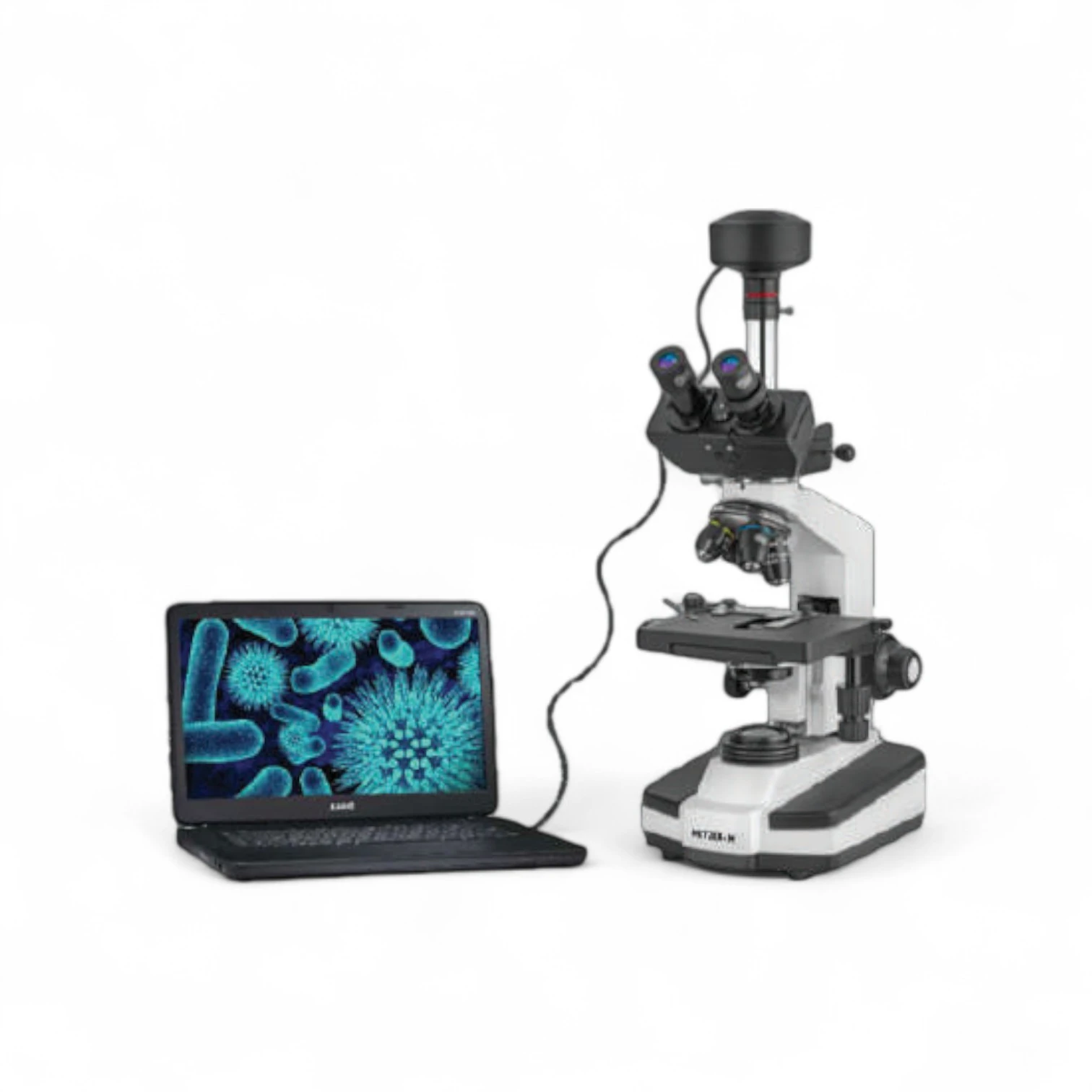

The Trinocular Digital Research Microscope ABTZ-5000 DTM is a state-of-the-art microscope designed for advanced research, clinical diagnostics, and higher education. Equipped with a high-resolution USB digital camera, it allows real-time specimen viewing, capturing, and documentation directly on a computer, making it ideal for teaching, training, and collaborative research.

With a magnification range of 40x – 1000x, infinity-corrected optics, and ergonomic design, the ABTZ-5000 DTM delivers superior optical performance, high contrast, and crystal-clear images. Its trinocular head supports both direct observation and digital photomicrography simultaneously, ensuring flexibility for modern laboratory needs.

Key Features:

• Magnification: 40x – 1000x

• Observation: Trinocular head, inclined 45°, 360° rotatable, interpupillary & diopter adjustment

• Stand: Durable die-cast aluminum stand for stability and long life

• Stage: Co-axial double plate mechanical stage with ball bearing guideways

• Focusing System: Coarse & fine coaxial focusing mechanism with precision ball bearing movements

• Illumination: High-brightness 3W LED lamp with adjustable brightness control

• Nosepiece: Quadruple revolving nosepiece with precise click stops

• Objectives: Infinity-corrected DIN-SP Achromatic 4x, 10x, 40x (SL), 100x oil immersion (SL), anti-fungal coated

• Eyepieces: Wide-field 10x paired, extra-wide field, anti-fungal coated

• Digital USB Camera:

  • 3.0 Megapixel Color CMOS sensor

  • Resolution: 2048 × 1536 pixels

  • Pixel size: 3.2 × 3.2 µm

  • 30-bit color depth

  • Exposure range: 1 µs – 2 seconds

  • High-speed image transfer to PC

  • Compatible with standard microscopy software

Applications:

• Advanced biological & medical research

• Clinical diagnostics & pathology labs

• University-level teaching & e-learning

• Microbiology, cytology & histology imaging

• Photomicrography & digital documentation
