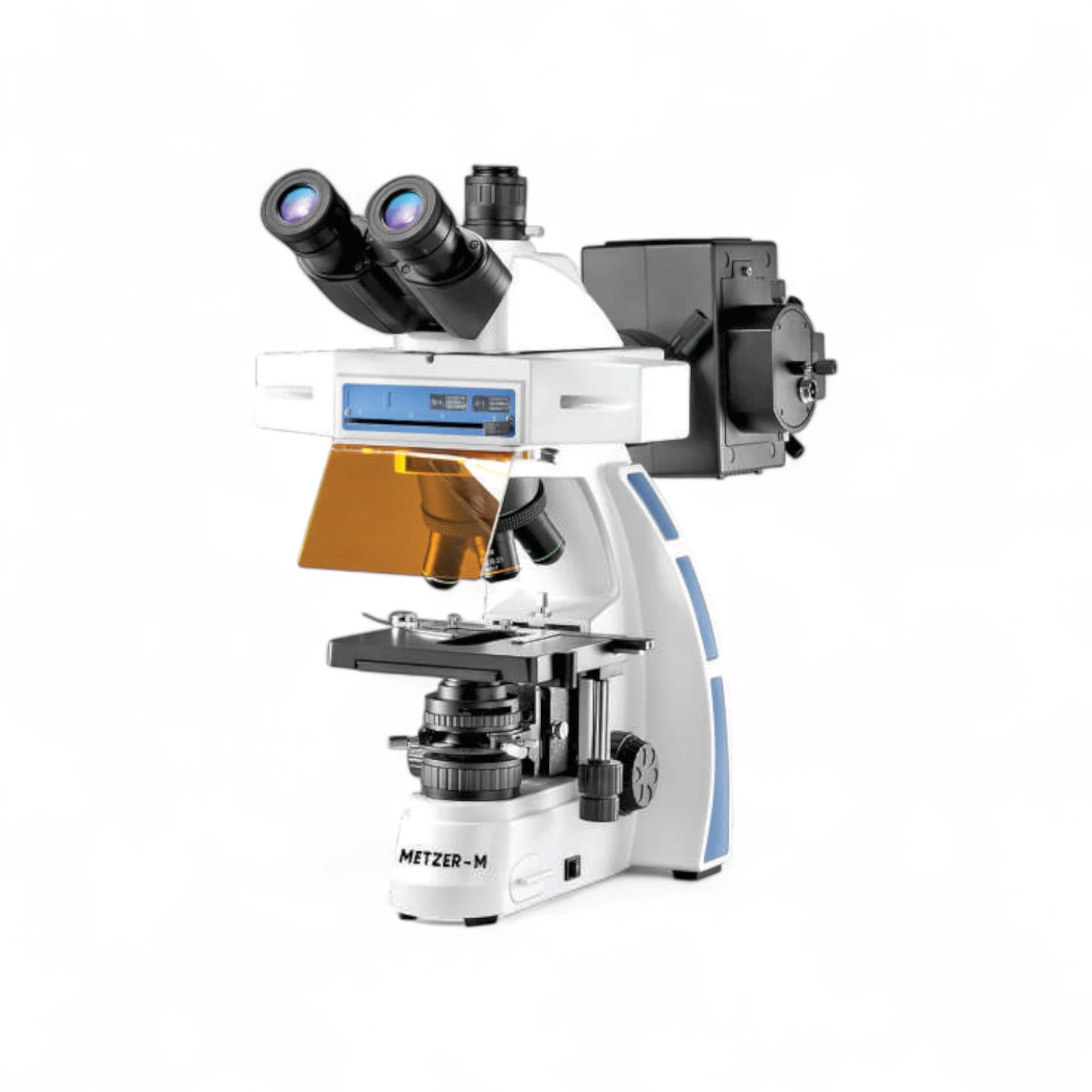

The Trinocular Fluorescence Microscope ABTZ – 8000 FL STAR is a high-performance research microscope designed for advanced biomedical studies, molecular biology, microbiology, and clinical diagnostics. Built with infinity-corrected Plan Achromatic optics and a multi-channel fluorescence system, it ensures sharp, high-contrast imaging for both brightfield and fluorescence applications.

With its trinocular head, this model allows simultaneous visual observation and digital imaging/photomicrography, making it ideal for documentation, teaching, and research. The STAR edition comes with an enhanced fluorescence attachment featuring high-intensity illumination and multi-filter cubes, enabling precise imaging of multiple fluorophores.

🔑 Key Features

• Observation Head: Trinocular Seidentopf head, inclined 30°, 360° rotatable, with trinocular phototube for digital imaging

• Eyepieces: Extra wide-field 10x (paired), F.O.V. 22 mm, anti-fungal coated

• Objectives: Infinity-corrected Plan Achromatic (Phase/Fluorescence options) – 4x, 10x, 40x (spring-loaded), 100x oil immersion

• Optics: High-resolution infinity system with Plan Achromatic objectives for fluorescence & brightfield clarity

• Stage: Double-layer mechanical stage with low-drive co-axial controls, X-Y travel ~76 × 50 mm

• Focusing: Co-axial coarse & fine focusing with pre-focusing lever, tension control, fine division ~0.002 mm

• Condenser: Abbe condenser N.A. 1.25 with iris diaphragm, phase contrast & fluorescence compatibility

• Illumination:

  • Brightfield: Köhler LED illumination with adjustable brightness

  • Fluorescence: High-intensity LED/Hg lamp system with filter cubes (Blue, Green, UV, optional Red)

• Special Features (STAR Edition):

  • Enhanced fluorescence sensitivity

  • Multi-channel filter system for various fluorophores

  • Ergonomically designed for extended lab use

• Applications: Immunofluorescence, live-cell imaging, pathology, microbiology, molecular biology, and biomedical research
