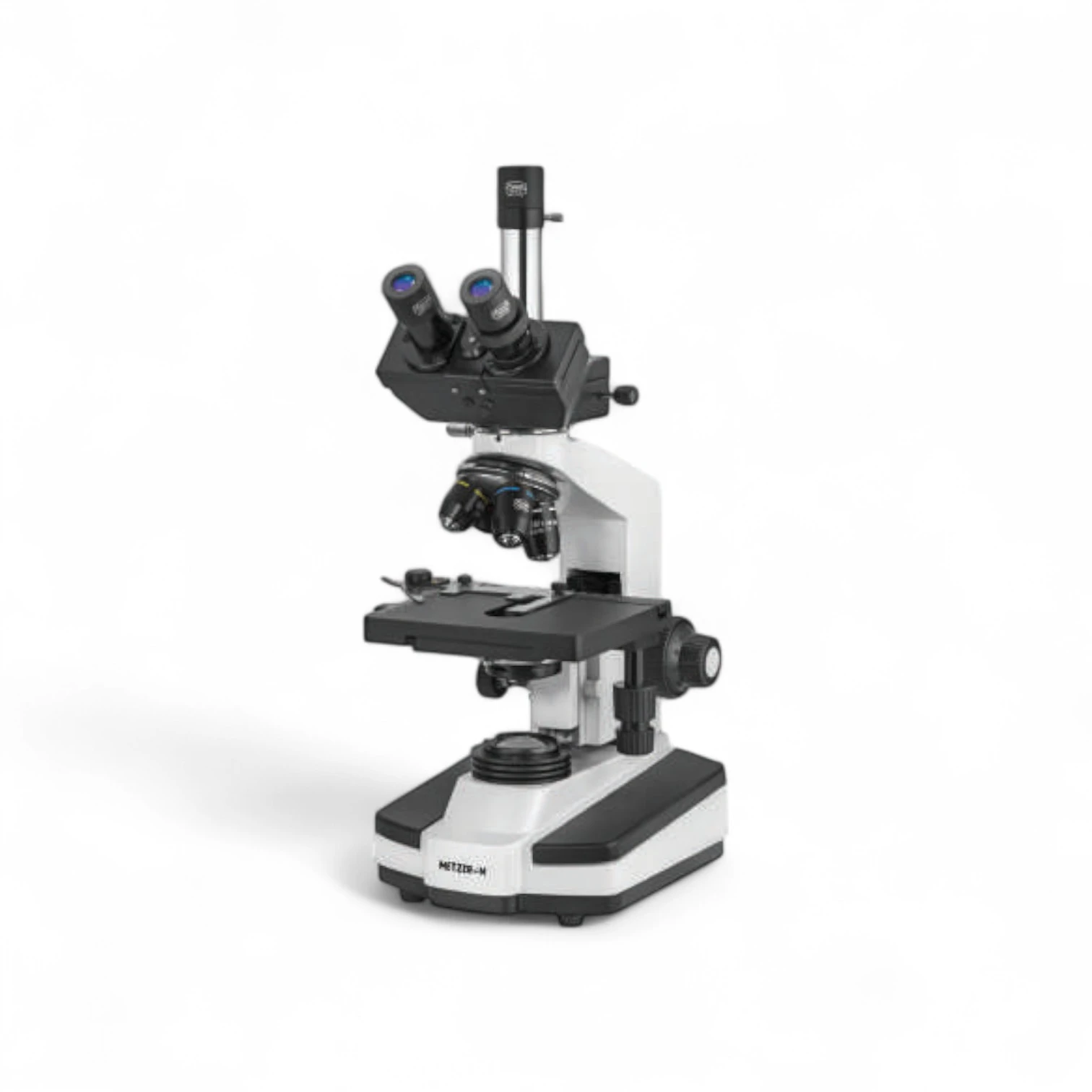

The Trinocular Research Microscope ABTZ-5000 TM is a premium optical instrument designed for professional research, clinical diagnostics, and higher education. With a magnification range of 40x – 1000x and infinity-corrected optics, it provides sharp, high-contrast, and distortion-free images for detailed biological and medical studies.

This model is equipped with a trinocular observation head, allowing both visual study and digital photomicrography simultaneously. Built with a sturdy die-cast aluminum stand, smooth co-axial focusing, and advanced LED illumination, the ABTZ-5000 TM is reliable, durable, and ergonomically designed for long working sessions.

Key Features:

• Magnification: 40x – 1000x

• Observation: Trinocular head, inclined 45°, 360° rotatable, interpupillary & diopter adjustment

• Stand: Strong pressure die-cast aluminum stand for durability

• Stage: Double plate mechanical stage with co-axial low drive system, ball bearing guideways

• Focusing System: Coarse & fine coaxial focusing mechanism with precision ball bearing movements

• Illumination: Built-in 3W LED lamp with adjustable brightness

• Nosepiece: Quadruple revolving nosepiece with positive click stops

• Objectives: DIN-SP Achromatic 4x, 10x, 40x (SL), 100x oil immersion (SL), anti-fungal & infinity-corrected

• Eyepieces: Wide-field 10x paired, anti-fungal & anti-reflection coated

• Additional Feature: Trinocular port for digital imaging / microphotography

Applications:

• Medical & biological research laboratories

• Clinical diagnostics and pathology labs

• Universities & higher education institutions

• Advanced microbiology, cytology, and histology research

• Digital imaging & teaching demonstrations
