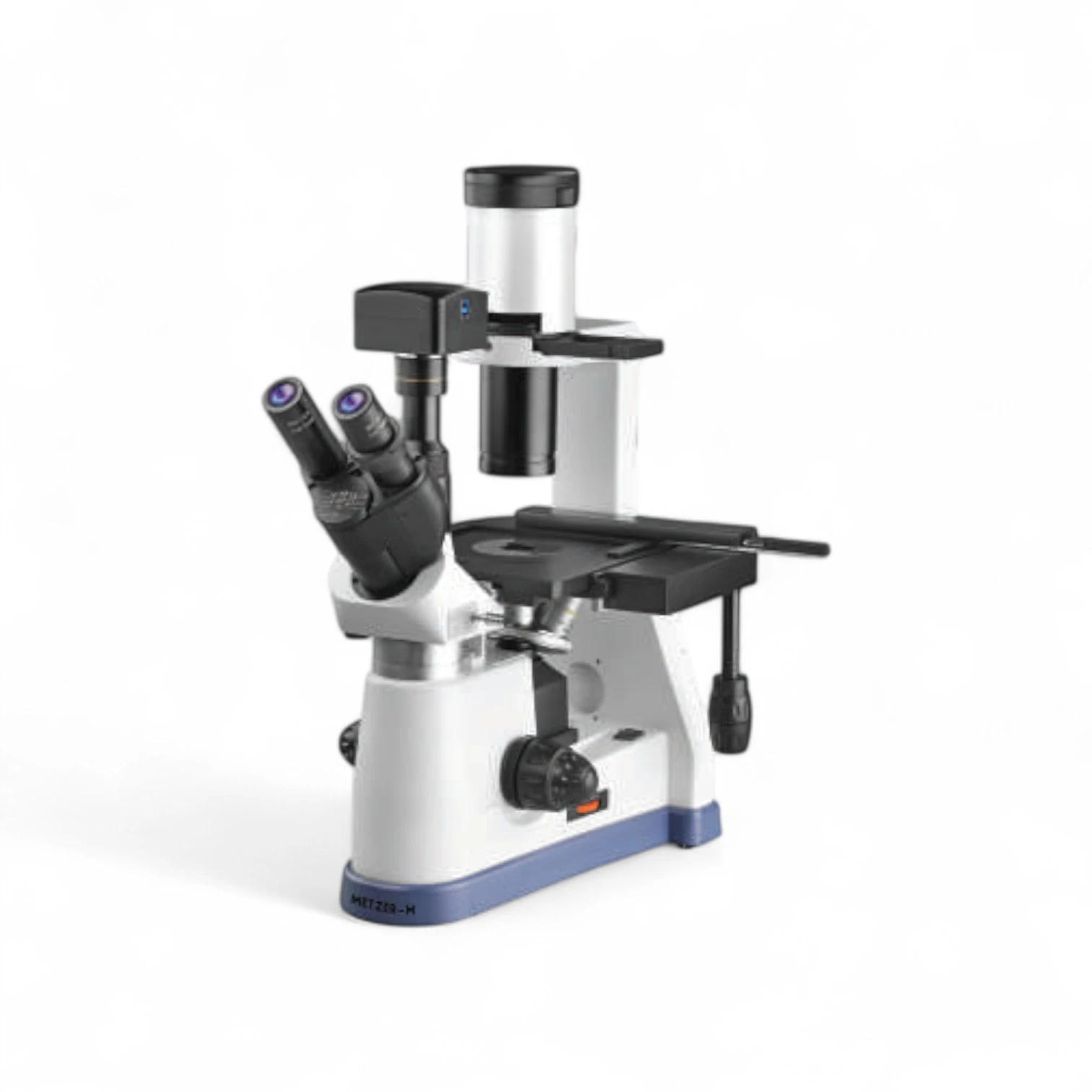

The Trinocular Tissue Culture Microscope ABTZ – 6000 TTCM (STAR) is an advanced research-grade inverted microscope designed for cell culture studies, biomedical research, and clinical laboratories. Equipped with infinity-corrected plan achromatic optics, it ensures high-contrast, sharp, and true-color images, essential for tissue culture and live cell imaging.

The trinocular design provides simultaneous visual observation and photomicrography/digital imaging, making it an ideal choice for documentation and teaching. With a large mechanical stage, precision focusing system, and Köhler LED illumination, this model offers stability, clarity, and comfort for extended lab sessions.

🔑 Key Features

• Magnification: 40x – 1000x (expandable with optional eyepieces/objectives)

• Observation Head: Trinocular Seidentopf head, inclined 30°, 360° rotatable, vertical phototube for camera attachment, interpupillary 48–75 mm, diopter adjustment (±5)

• Eyepieces: Extra wide-field 10x (paired), anti-fungal coated, high eye-point design

• Objectives: Infinity-corrected Plan Achromatic 4x, 10x, 40x (spring-loaded), 100x oil immersion (SL), anti-fungal treated

• Stage: Large double-layer mechanical stage for tissue culture work, smooth co-axial X–Y controls, approx. 76×50 mm travel range

• Focusing System: Co-axial coarse & fine focusing with pre-focusing lever, tension adjustment, fine division ~0.002 mm

• Nosepiece: Reverse angle sextuple nosepiece mounted on ball bearings for smooth objective changes

• Condenser: Swing-out Abbe condenser N.A. 1.25 with iris diaphragm & filter holder

• Illumination: High-efficiency Köhler LED illumination with brightness control (3W/5W LED lamp)

• Special Feature: Trinocular phototube for digital camera integration & live image documentation

• Build Quality: Ergonomic, rigid stand designed for long-term professional use in research and medical labs
