Digital Nanoammeter (DNM-121)

(0) 0 Reviews 0 Orders 0 Wish listed

₹15,000.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

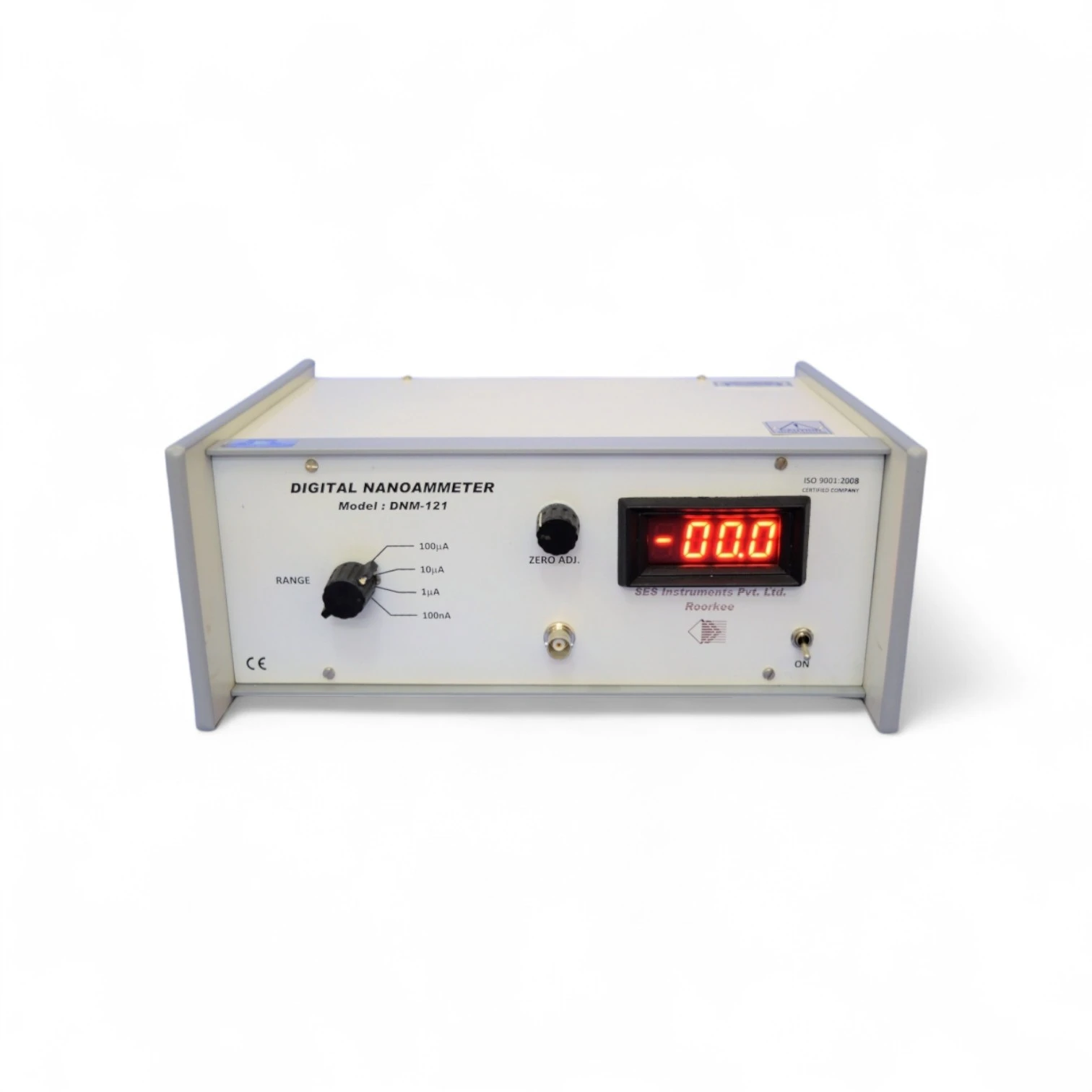

The DNM‑121 is a high‑precision digital nanoammeter engineered to accurately measure ultra‑low DC currents, from 100 pA to 200 µA, across four decade ranges with 100 % over-ranging. Featuring low‑leakage FET‑input design and high‑negative feedback, it offers excellent linearity, fast response, and accuracy of ±0.2 % across all ranges with resolution down to 0.1 nA. Current input is accepted from either polarity, and the instrument provides digital readout on a 3½‑digit LED display with auto polarity and decimal indication. The unit is built with rugged industrial casing for lab use and operates on a standard 220 V ±10 %, 50 Hz supply.

Key Specs:

Four ranges: 100 nA / 1 µA / 10 µA / 100 µA (each with 100 % over‑range)
Resolution: 0.1 nA; Accuracy: ±0.2 %
Input resistance per range: 25 Ω, 2.5 Ω, 0.25 Ω, 0.025 Ω
Display: 3½‑digit LED, auto polarity
Dimensions: 240 × 275 × 120 mm; Weight: ~2.5 kg

Designed for measuring ultra-low currents from devices like photomultiplier tubes, photometers, solid-state device leakage, FET gate currents, very high resistance samples, piezoelectric or pH electrodes.
