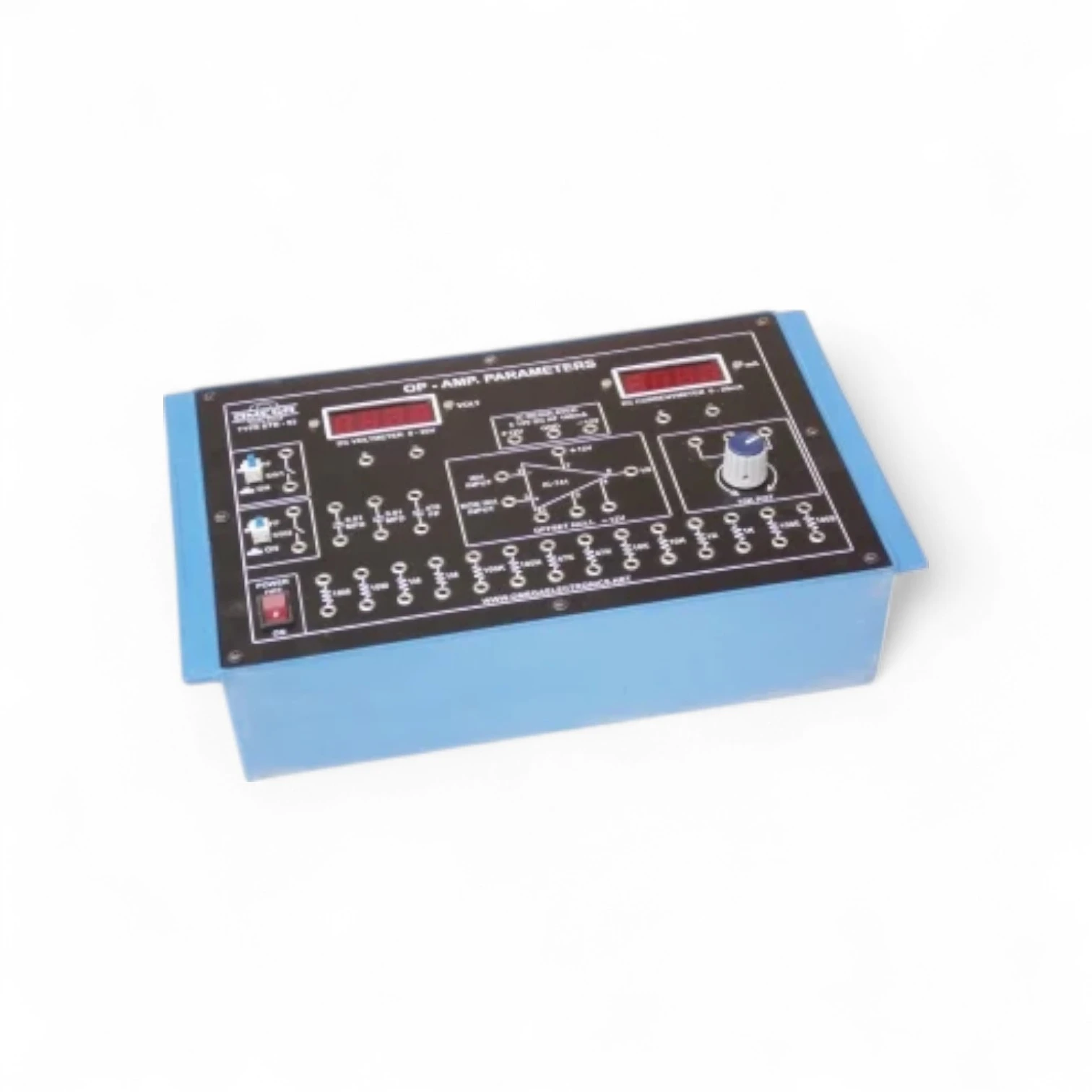

ETB-092 (Model OP-AMP Parameters with power supply and 1dual range meters)

(0)

100 In Stock

₹10,000.0

Quantity

Total price: ₹10,000.0

Tax: ₹18.0

Details description
ETB-092 – OP-AMP Parameters with Power Supply and 1 Dual Range Meter is a comprehensive trainer designed to experimentally determine key parameters of Operational Amplifiers (Op-Amps) such as input offset voltage, input bias current, input impedance, CMRR (Common Mode Rejection Ratio), slew rate, and more. The trainer is based on standard op-amps like UA741 or equivalent, and includes a regulated power supply and a dual range meter for precise measurement of voltage and current values. This trainer is highly suitable for analog electronics, instrumentation, and circuit design labs. Key Features: Facilitates study of critical Op-Amp parameters Includes experiments for input offset voltage, bias current, CMRR, slew rate, and input/output impedance Built-in regulated DC power supply One dual range meter for accurate voltage/current measurement Clear front panel layout with test points and labeled circuit sections Ideal for students learning analog IC behavior and performance evaluation Suitable for use in electronics, instrumentation, and control systems labs

Details description

ETB-092 – OP-AMP Parameters with Power Supply and 1 Dual Range Meter is a comprehensive trainer designed to experimentally determine key parameters of Operational Amplifiers (Op-Amps) such as input offset voltage, input bias current, input impedance, CMRR (Common Mode Rejection Ratio), slew rate, and more. The trainer is based on standard op-amps like UA741 or equivalent, and includes a regulated power supply and a dual range meter for precise measurement of voltage and current values. This trainer is highly suitable for analog electronics, instrumentation, and circuit design labs.

Key Features:

Facilitates study of critical Op-Amp parameters
Includes experiments for input offset voltage, bias current, CMRR, slew rate, and input/output impedance
Built-in regulated DC power supply
One dual range meter for accurate voltage/current measurement
Clear front panel layout with test points and labeled circuit sections
Ideal for students learning analog IC behavior and performance evaluation
Suitable for use in electronics, instrumentation, and control systems labs
