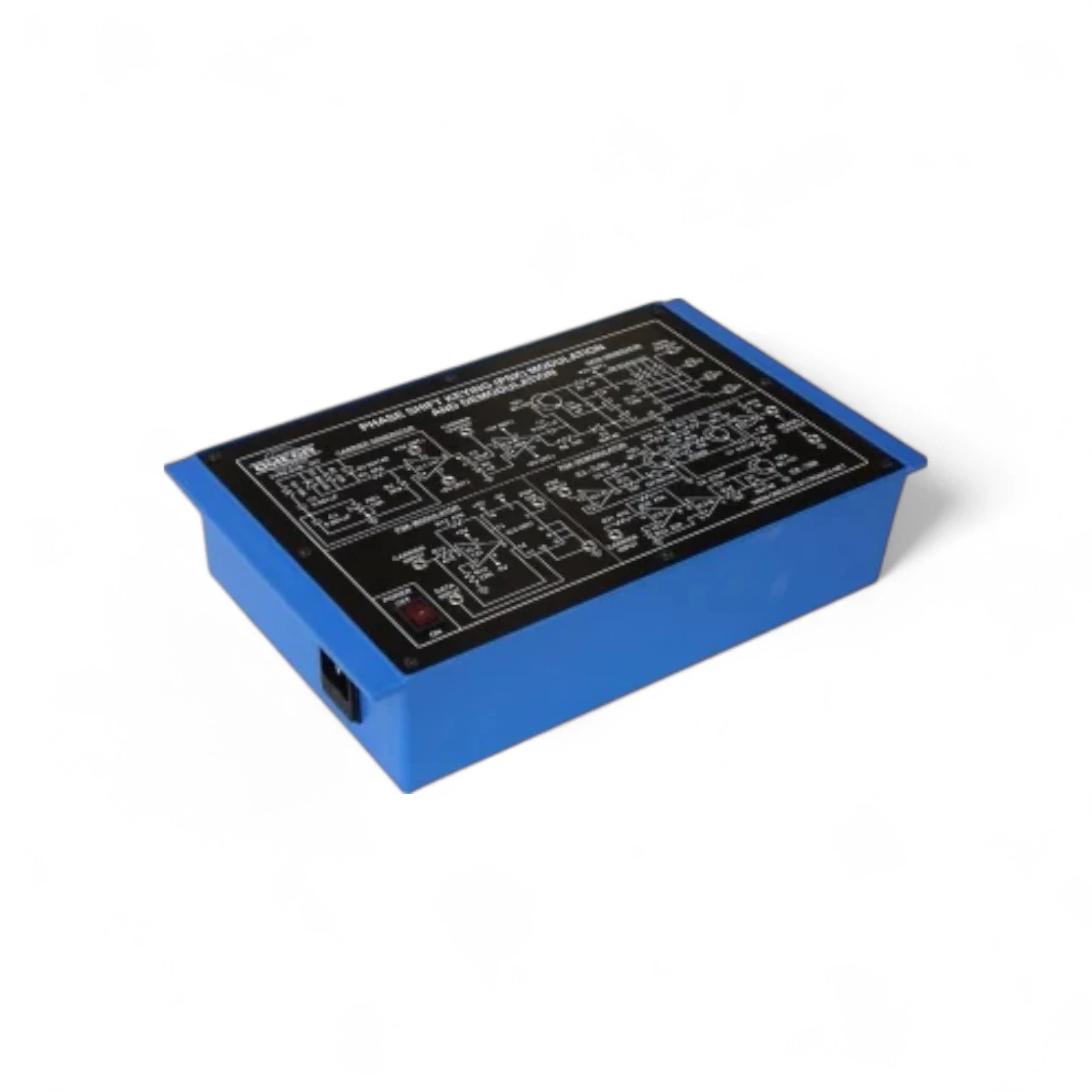

The ETB-207 PSK Modulation and Demodulation Trainer is a robust and intuitive laboratory training system designed to demonstrate the principles of Phase Shift Keying (PSK)—one of the most widely used digital modulation techniques in modern communication systems.
This educational setup provides hands-on experience in generating and decoding PSK signals, with a clear layout and labeled components for ease of understanding. The model includes a built-in power supply, clock generator, and data input, making it a complete and standalone system for laboratory use.
With dedicated test points and output terminals, students and engineers can visualize PSK waveforms using a CRO or DSO, study phase changes, and evaluate system behavior under various input conditions.
Key Features:
Demonstrates PSK modulation and demodulation in real time
Built-in regulated power supply and functional signal blocks
Clearly labeled circuit schematic and front panel layout
Output signals available for oscilloscope monitoring
Facilitates practical study of digital data transmission
Suitable for B.E./B.Tech, Diploma, and B.Sc. Electronics Labs
