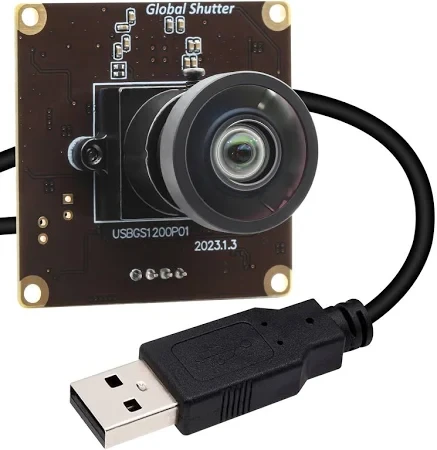

The 2MP Global Shutter USB Camera Board (90fps) is a high-performance imaging module designed for computer vision, robotics, drones, and industrial R&D. Equipped with a global shutter CMOS sensor, this camera ensures distortion-free imaging by exposing all pixels simultaneously, making it ideal for capturing fast-moving objects and dynamic scenes without motion blur.

With a resolution of 1920 × 1080 (2MP) and support for frame rates up to 90 fps, it delivers high-quality real-time imaging for research and embedded vision applications. Its USB 3.0 interface (UVC compliant) enables plug-and-play connectivity with Raspberry Pi (USB host), NVIDIA Jetson, PCs, and Linux-based systems, supporting frameworks like OpenCV, ROS, and AI vision toolkits.

Technical Specifications:

• Sensor Type: 2MP Global Shutter CMOS

• Resolution: 1920 × 1080 (Full HD)

• Pixel Size: ~3.45 µm × 3.45 µm (typical)

• Shutter Type: Global Shutter (no rolling shutter distortion)

• Frame Rate: Up to 90 fps @ 2MP; higher fps at reduced resolution

• Interface: USB 3.0 (UVC compliant, plug-and-play)

• Lens Mount: M12 / CS / C-mount options (varies by vendor)

• Operating Voltage: 5V via USB

• Compatibility: Raspberry Pi (with USB host), NVIDIA Jetson, Windows, Linux, ROS, OpenCV

• Form Factor: Compact PCB camera board

Features:

• Global shutter sensor for blur-free capture of moving objects

• High frame rate (90 fps) for real-time applications

• USB 3.0 interface for high-speed data transfer

• Multiple lens mount options for flexible field of view

• Cross-platform support with SDKs and libraries (ROS, OpenCV, AI frameworks)

• Compact design for easy integration into embedded systems

Common Research & IoT Use Cases:

• Robotics & Drones: SLAM, obstacle avoidance, fast object detection

• Industrial Research: Machine vision, conveyor belt inspection, automated defect detection

• AI & Computer Vision: Motion capture, gesture recognition, dataset creation for deep learning

• IoT & Smart Systems: Surveillance, traffic analysis, smart city applications

• Academic Research: High-speed imaging for physics, biomechanics, and automation experiments

The 2MP Global Shutter USB Camera Board (90fps) is an excellent choice for researchers, IoT developers, and robotics engineers who need high-speed, distortion-free imaging in compact and reliable form factors.
