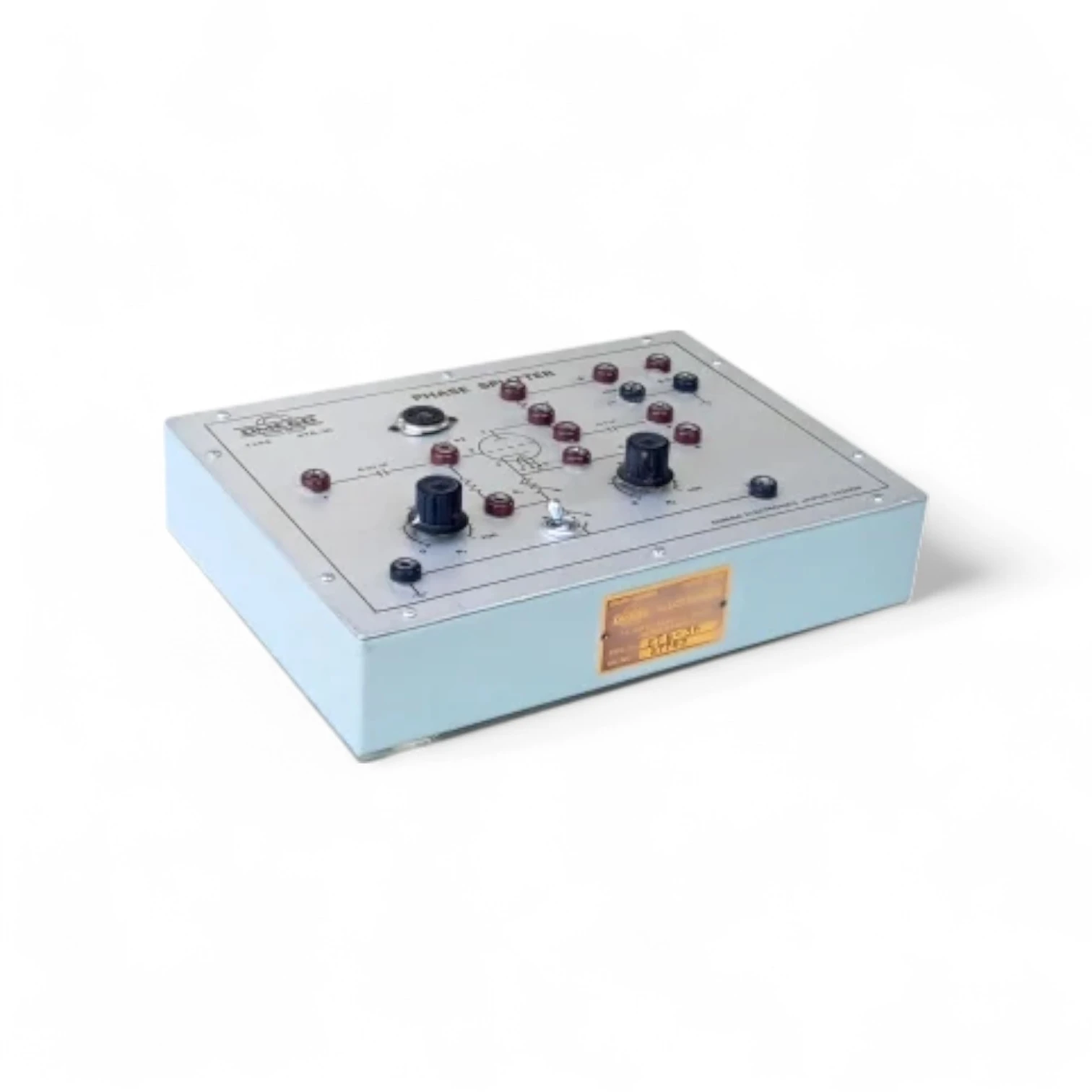

ETB-036 – Phase Splitter (V.V.) is an educational trainer designed to demonstrate the working principle and operation of a phase splitter circuit used in analog and signal processing applications. A phase splitter generates two output signals that are 180 degrees out of phase with each other—essential in push-pull amplifier stages and balanced signal systems. This model is ideal for electronics and communication labs to help students understand phase relationships, waveform inversion, and amplifier input signal preparation. Built with quality components and test points, it supports easy analysis and waveform observation.
Key Features:
Demonstrates the working of a basic phase splitter circuit
Provides two outputs with equal amplitude and 180° phase difference
Helps understand phase inversion and signal balancing
Ideal for studying push-pull amplifier input configuration
Built-in regulated power supply and test points for oscilloscope connection
Suitable for analog electronics and communication lab experiments
