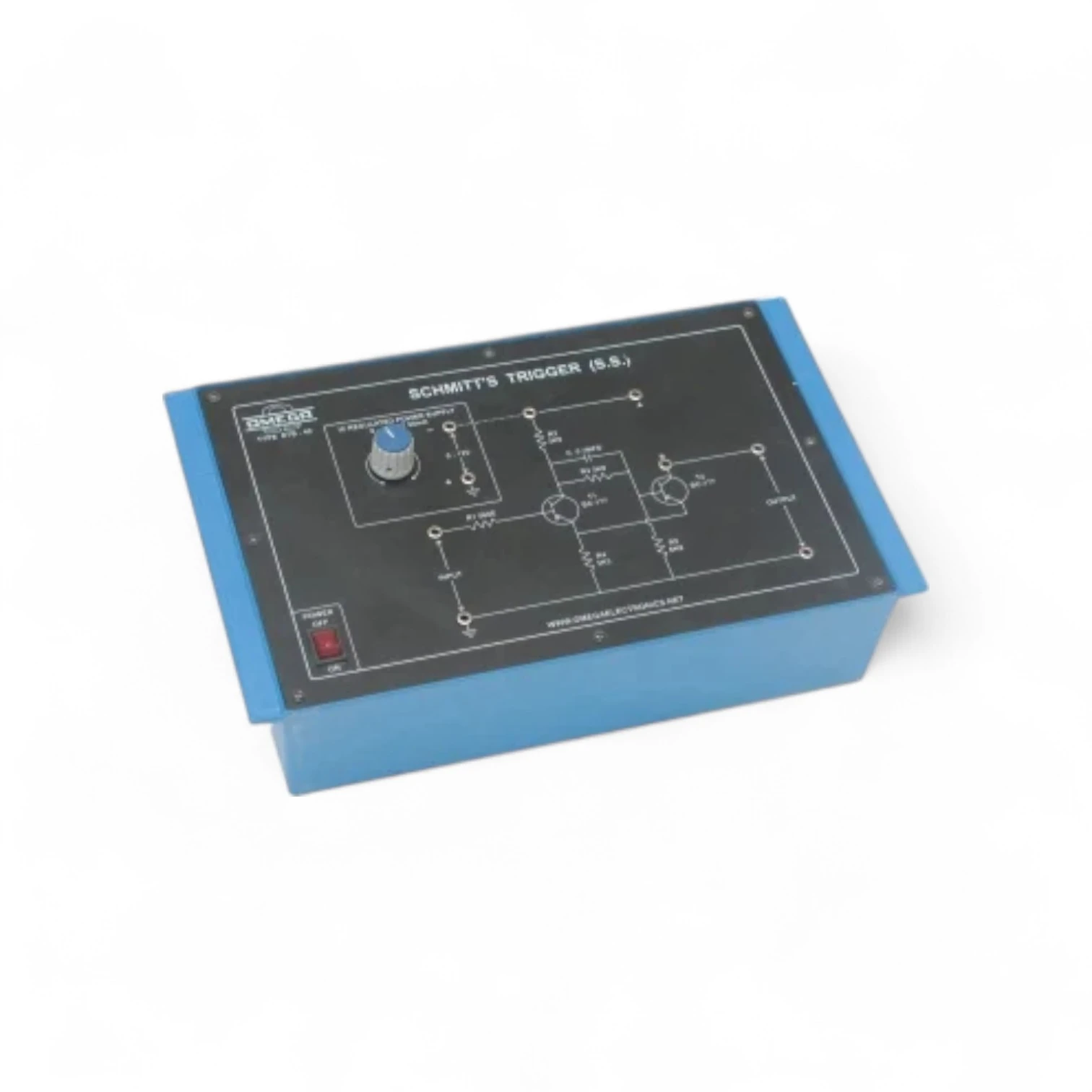

ETB-042 – Schmitt's Trigger with Power Supply is a well-designed educational trainer that demonstrates the working of a Schmitt Trigger circuit, widely used in signal conditioning and waveform shaping. The circuit introduces hysteresis, converting a noisy or slowly varying input into a clean, fast digital output transition. This trainer is essential for understanding noise immunity, bistable switching, and signal restoration in digital and analog systems. It includes a built-in regulated power supply and accessible test points for waveform observation and timing analysis.
Key Features:
Demonstrates the working principle of a Schmitt Trigger
Converts analog input into clean digital output using hysteresis
Built-in regulated power supply for plug-and-play operation
Test points provided for oscilloscope monitoring and waveform analysis
Ideal for studying threshold behavior and signal conditioning
Useful in analog, digital, and communication electronics lab experiments
