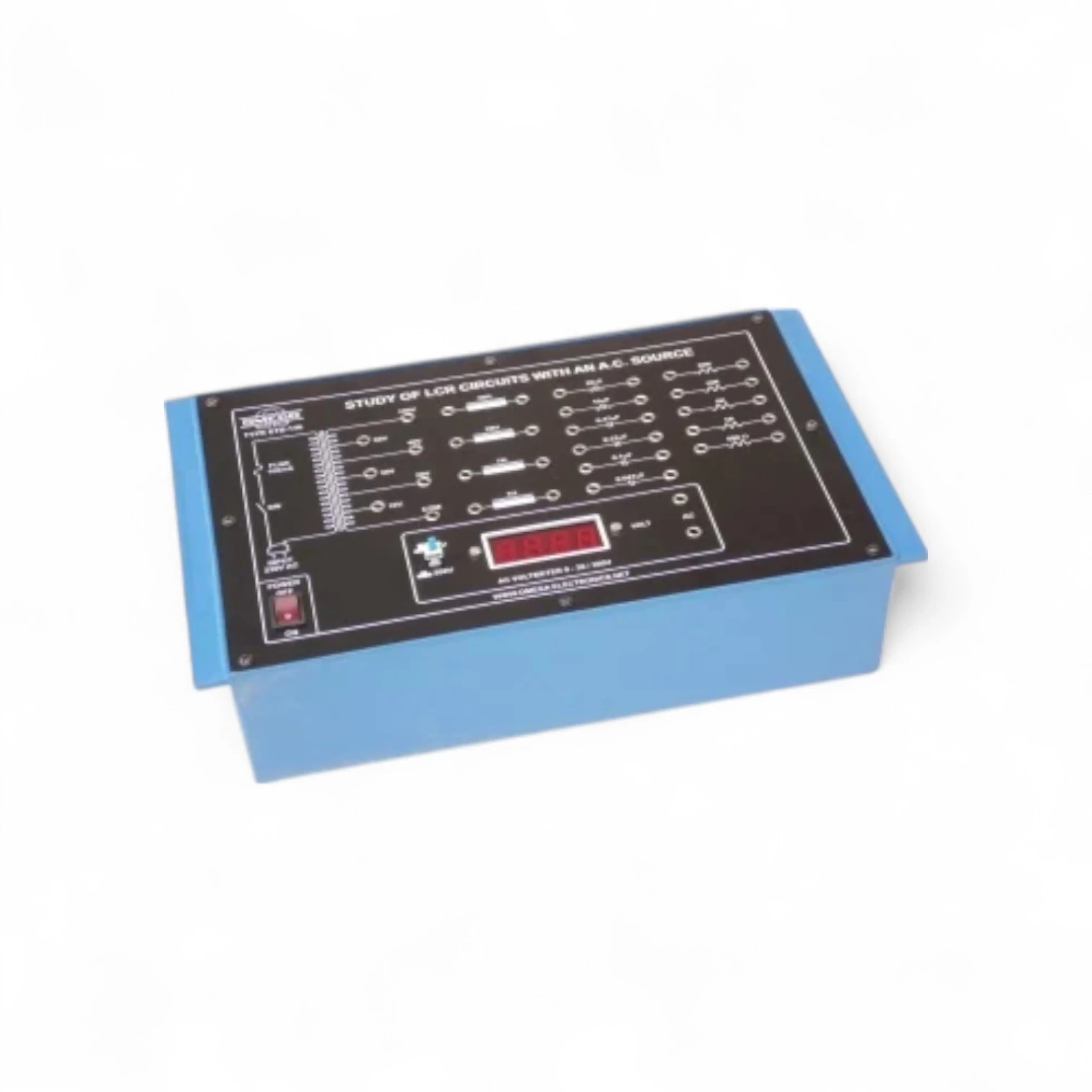

ETB-146 – Study of LCR Circuits with an AC Source having Power Amplifier is a comprehensive educational trainer that enables learners to study the behavior of LCR (Inductor-Capacitor-Resistor) circuits under AC excitation. The model includes a built-in power amplifier, providing a stable and adjustable AC source to analyze the effects of frequency and impedance on series and parallel LCR configurations. This trainer helps students understand key AC circuit concepts like resonance, phase relationships, voltage/current characteristics, power factor, and impedance variation. It is ideal for practical demonstrations and hands-on experiments in electrical and electronics engineering labs. Key Features: Demonstrates series and parallel LCR circuit behavior under AC supply Integrated AC source with power amplifier for reliable excitation Study of resonance, power factor, and impedance characteristics Includes test points and terminals for easy connection and waveform observation Suitable for use with CROs and multimeters for waveform and voltage analysis Essential for electrical circuit analysis, power electronics, and instrumentation labs

Details description

ETB-146 – Study of LCR Circuits with an AC Source having Power Amplifier is a comprehensive educational trainer that enables learners to study the behavior of LCR (Inductor-Capacitor-Resistor) circuits under AC excitation. The model includes a built-in power amplifier, providing a stable and adjustable AC source to analyze the effects of frequency and impedance on series and parallel LCR configurations.

This trainer helps students understand key AC circuit concepts like resonance, phase relationships, voltage/current characteristics, power factor, and impedance variation. It is ideal for practical demonstrations and hands-on experiments in electrical and electronics engineering labs.

Key Features:

Demonstrates series and parallel LCR circuit behavior under AC supply
Integrated AC source with power amplifier for reliable excitation
Study of resonance, power factor, and impedance characteristics
Includes test points and terminals for easy connection and waveform observation
Suitable for use with CROs and multimeters for waveform and voltage analysis
Essential for electrical circuit analysis, power electronics, and instrumentation labs
