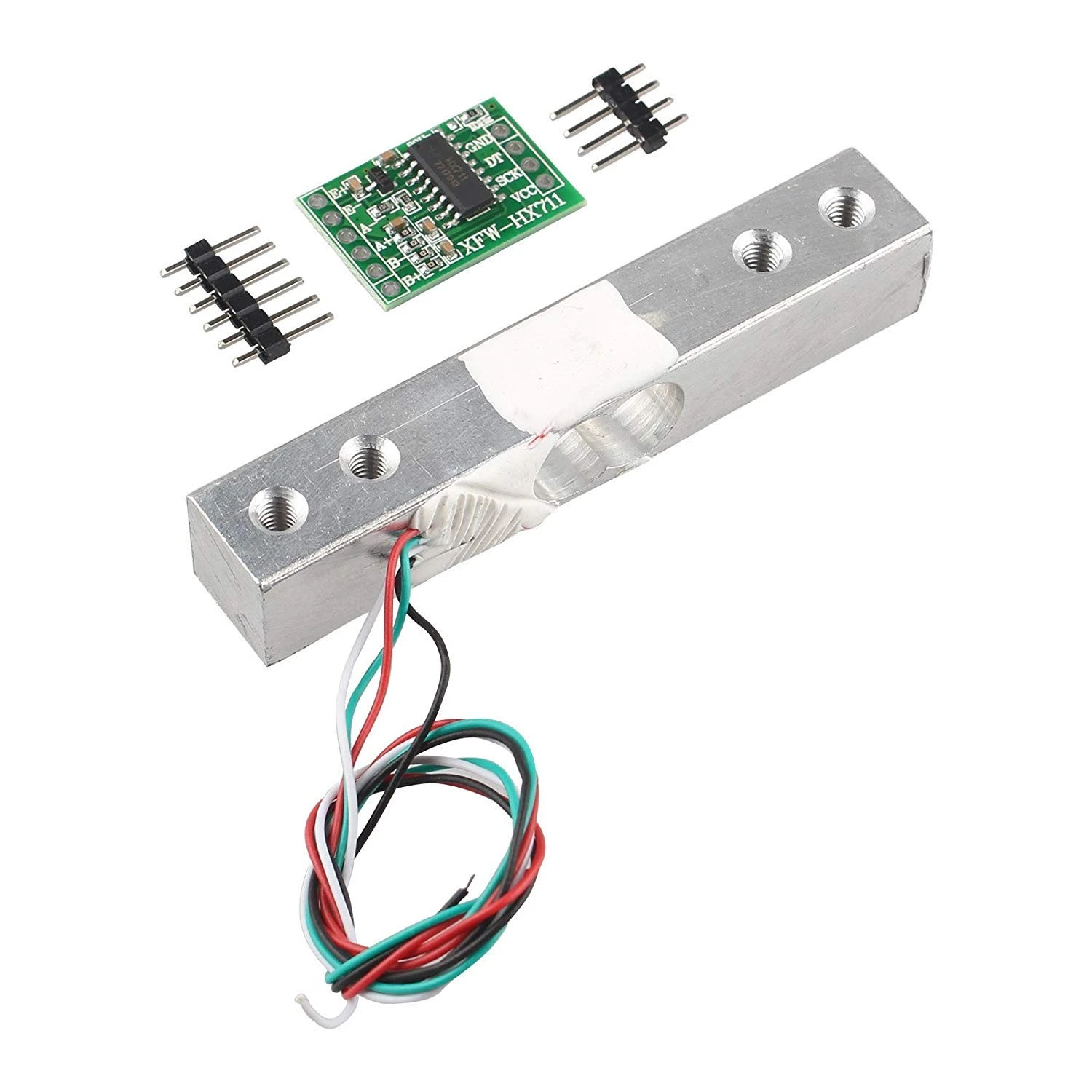

HX711 + 1–5kg Load Cell Weight Sensor Module for Arduino & IoT Research

HX711 + 1–5kg Load Cell Module

(0)

0 Reviews

1000 In Stock

₹532

Qty

Total price: ₹5,320

Details description
The HX711 + 1–5kg Load Cell Module is a widely used weight and force measurement system for research and prototyping. The load cell is a strain gauge-based sensor that converts applied force (weight) into an electrical signal, while the HX711 precision 24-bit ADC (Analog-to-Digital Converter) amplifies and converts this signal into a digital output suitable for microcontrollers. Load Cell Capacity: 1kg – 5kg (depending on variant) Sensor Type: Strain gauge load cell Amplifier/Converter IC: HX711, 24-bit ADC with high precision Output Interface: Digital (2-wire interface: DT & SCK) Operating Voltage: 2.6V – 5.5V (compatible with Arduino, ESP32, STM32, Raspberry Pi) Accuracy: Milligram-level resolution with proper calibration This module is commonly used in academic research, robotics, IoT-based smart weighing systems, biomedical instrumentation, and material testing projects. Researchers often integrate the HX711 + Load Cell with Arduino and Raspberry Pi for building digital scales, force measurement setups, and structural load analysis experiments.

Details description

The HX711 + 1–5kg Load Cell Module is a widely used weight and force measurement system for research and prototyping. The load cell is a strain gauge-based sensor that converts applied force (weight) into an electrical signal, while the HX711 precision 24-bit ADC (Analog-to-Digital Converter) amplifies and converts this signal into a digital output suitable for microcontrollers.

Load Cell Capacity: 1kg – 5kg (depending on variant)
Sensor Type: Strain gauge load cell
Amplifier/Converter IC: HX711, 24-bit ADC with high precision
Output Interface: Digital (2-wire interface: DT & SCK)
Operating Voltage: 2.6V – 5.5V (compatible with Arduino, ESP32, STM32, Raspberry Pi)
Accuracy: Milligram-level resolution with proper calibration

This module is commonly used in academic research, robotics, IoT-based smart weighing systems, biomedical instrumentation, and material testing projects. Researchers often integrate the HX711 + Load Cell with Arduino and Raspberry Pi for building digital scales, force measurement setups, and structural load analysis experiments.
