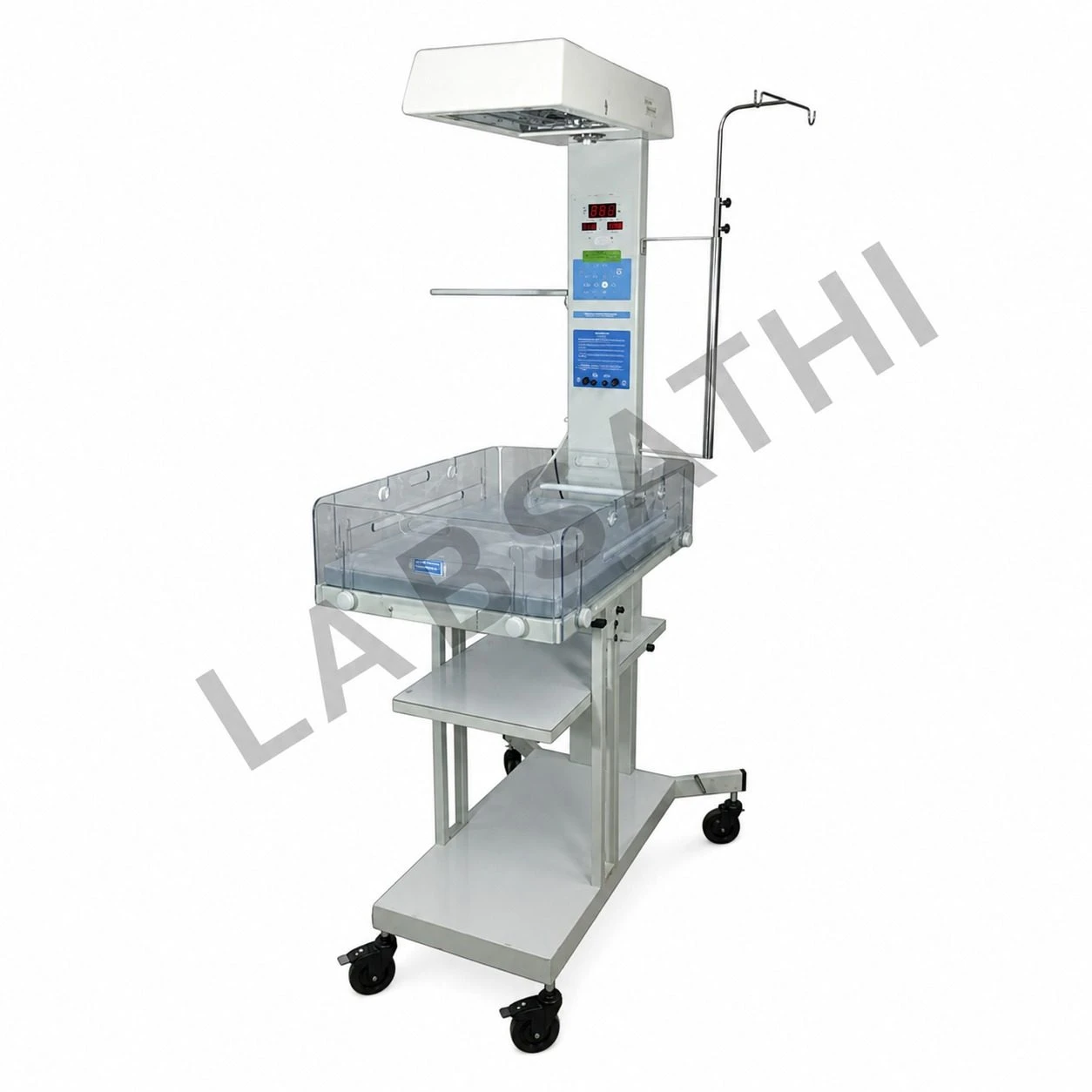

Infant Radiant Warmer with Fixed Baby Cradle

Product Description

The Infant Radiant Warmer is designed to provide controlled thermal support for newborns. It features a fixed-height structure with an attached baby cradle mounted on four 100 mm wheels, including two wheels with brakes for stability. The system incorporates a microprocessor-based temperature controller with Skin Servo, Manual, and Pre-Warm operating modes to facilitate effective temperature management.

The warmer includes a stainless steel baby tray fitted with a waterproof zipped mattress, continuous head-up/down adjustment, X-ray cassette holder, collapsible lockable side supports made of unbreakable polycarbonate material, sensor and ventilator tubing slots, monitor placement tray, stainless steel infusion rod, and a lower shelf designed to facilitate under-surface phototherapy.

Key Features

1. Fixed-height warmer with attached baby cradle
2. Mounted on 4" (100 mm) wheels, 2 with brakes
3. Stainless steel baby tray
4. Waterproof zipped cover mattress (21–25 kg/m³ density)
5. Continuous head-up/down facility
6. X-ray cassette holder
7. Collapsible and lockable polycarbonate side supports
8. Slots for sensor and ventilator tubing
9. Side tray for monitor placement
10. Stainless steel infusion rod for syringe/infusion pump mounting
11. Lower shelf to facilitate under-surface phototherapy
12. Microprocessor-based temperature controller
13. Keypad lock facility
14. Swivelling overhead heater assembly
15. Ceramic heater with halogen observation light

Dimensions

Display System

1. LED Display for:
2. Skin Temperature
3. Set Temperature
4. Heater Power (%)
5. Resolution: 0.1°C
6. LCD Display for:
7. Modes of Operation
8. Alarm Messages
9. Skin Temperature in °F
10. Timer

Temperature Accuracy

1. Thermistor-based sensor
2. Accuracy: ±0.2°C
3. Temperature calibration not required

Operating Modes

Skin Servo Mode

1. Temperature Range: 34°C to 38°C
2. Resolution: 0.1°C

Manual Mode

1. Heater Power Adjustment: 0–100%
2. Increment: 5%
3. Time Duration: 15 Minutes

Pre-Warm Mode

1. Heater Power Adjustment: 0–25%
2. Increment: 5%
3. Time Duration: 30 Minutes
4. No alarm activation during pre-warm mode

Electrical Specifications

1. Operating Voltage: 220–240 VAC
2. Frequency: 50 Hz
3. Maximum Power Consumption: 800 Watts

Heater Assembly

1. Swivelling overhead heater box
2. Ceramic heater: 650 Watts
3. Parabolic reflector
4. Safety grill
5. Halogen observation light: 12V / 50W

Comprehensive Safety Alarm System

The warmer is equipped with audio alarms featuring a 10-minute mute facility and visual alarm indications displayed on the LCD.

Applications

1. Neonatal Care Units
2. Newborn Care Areas
3. Infant Observation and Warming Applications
4. Facilities Requiring Under-Surface Phototherapy Support
5. Clinical Environments Requiring Controlled Thermal Management for Infants
