Study of Schmitt's Trigger Circuit (IC-741) with Power Supply and 1 meter

(0) 0 Reviews 0 Orders 0 Wish listed

₹20,000.00

Quantity :
Total price :
  (Tax : )

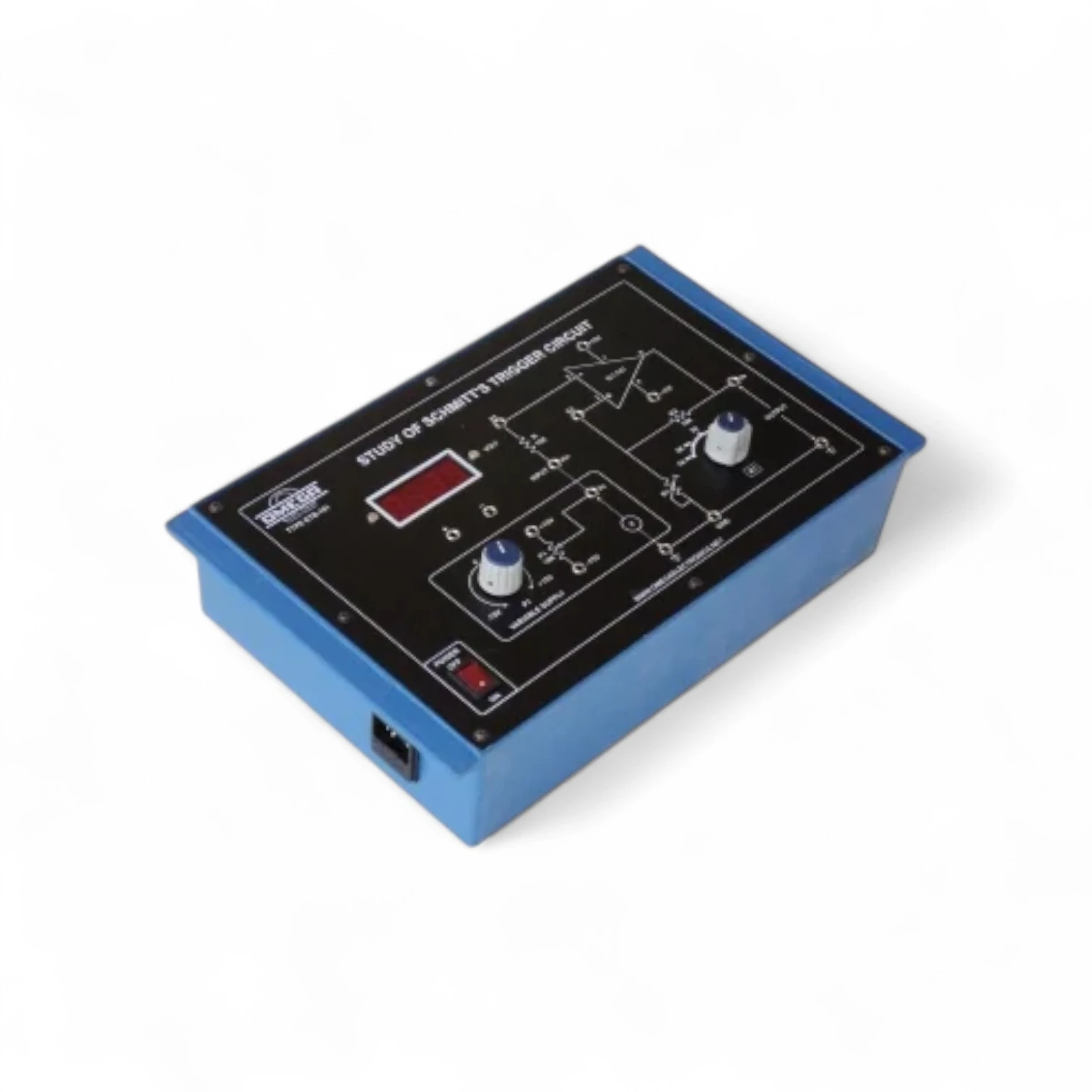

This trainer is designed to study the operation of a Schmitt’s Trigger circuit using the Op-Amp IC-741, an essential building block in analog electronics. The circuit demonstrates how a comparator with hysteresis can convert a noisy or slowly varying input into a clean digital output.

The trainer allows students to understand the concept of positive feedback, threshold levels (VUT and VLT), and hysteresis behavior of the op-amp in a Schmitt configuration.

Features include:

  • Operational amplifier IC-741 based Schmitt’s Trigger circuit

  • Built-in regulated power supply

  • One digital meter for voltage observation

  • Well-labeled test points for waveform analysis

  • Compact, safe, and user-friendly for lab use

This model is ideal for analog circuit labs, comparator applications, and foundational electronics training.
